Approximately 70% of residential plumbing failures are due to bad connections. This highlights the significance of fitting integrity, in addition to the pipe selection.
Best Website To Purchase 3 4 Copper Compression Fitting

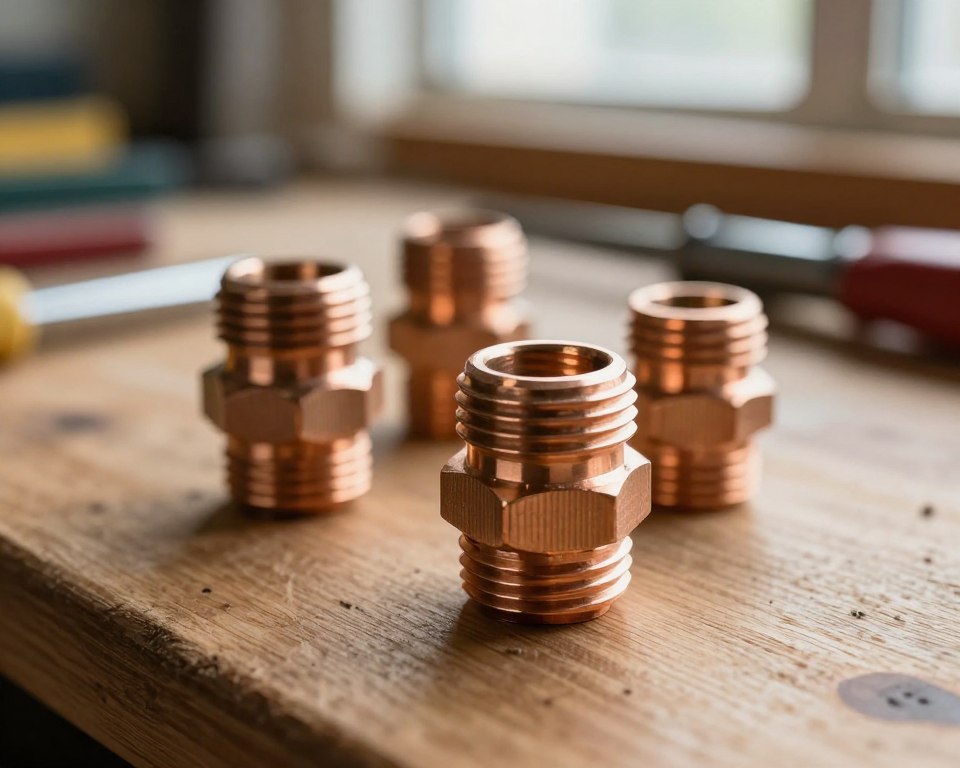

For installers and hobbyists, a dependable 3/4 inch compression fitting is indispensable. These parts deliver secure, leak-free connections when applied to the correct tubing.
Standard copper tubes are readily accessible, following ASTM/NSF codes for different uses. A 3/4 copper compression union, when installed correctly, provides long-lasting durability and resistance to rust. It also helps meet code with codes for new builds and maintenance.
Installation Parts Supply.com stocks top-grade 3/4 copper compression fitting components and matching tubing. This provides pros and DIYers a source for reliable parts that comply with standards for quality and durability.
Selecting High-Quality 3/4 Copper Compression Fittings For HVAC And Plumbing
High-quality 3/4″ fittings deliver dependable joints without soldering. Experts choose them for their ease of making rapid joins, fixes, and upgrades. Such parts give installers a durable, easy-to-service joint that endures job site rigors.
Durability and anti-corrosion properties of copper
Copper’s natural resistance to rust and its ability to withstand extreme temps render it suitable for various applications. It is good for potable water, HVAC refrigerant lines, solar systems, and certain fuel pipes. Premium fittings, in particular, withstand weather, keeping seals tight over years of use.
Compatibility with common copper tube types
For a tight seal, compression fittings must fit the pipe OD and wall type. These grades cover most uses: Type L is suitable for residential and commercial water systems, Grade M for standard home pipes, and Grade K for underground or heavy-duty applications. Always verify the pipe dimension when purchasing a 3/4 fitting part to guarantee it fits.
Residential and commercial applications
The parts are flexible and appropriate for a wide range of applications. People often use them on drinking water pipes, branches, and supply lines. In heating and cooling, they ensure safe operation by pairing with refrigerant-grade copper and compatible fittings. For mechanical joints in service calls, a 3/4 compression union or a 3/4 union brass coupler allows quick access for upkeep.
| Feature | Advantage | Typical Use |
|---|---|---|
| Rust resistance | Long service life in wet and exposed conditions | Water, solar, HVAC |
| Works with standard copper | Reliable seals when matched to tube OD | Home and business plumbing |
| Tool-free or simple-tool installation | Quick fixes, less waiting | Service, retrofits, emergencies |
| Brass and copper options | Choices for different needs | Brass for general, Copper for rust protection |
Understanding 3/4 Copper Compression Fitting Parts And Features
Knowing the parts and construction materials is crucial to selecting the right 3/4″ fitting. The fittings form a secure seal soldering-free. They work with a wide range of pressure and temp levels.
Anatomy Of A Compression Fitting
The main components are the body, a compression ring or ferrule, and the nut. When you tighten the nut it pushes the ferrule against the body. This action locks the tube, stopping leaks.
Quality packages often contain an seal ring of rubber or EPDM. Some kits also include a extra seal, easing service. Such additions are typical in deluxe fittings for cooling and HVAC.
Material Choices And Finishes
Typical metals include pure copper, brass, and nickel-plated brass. Copper parts are best for matching copper tubing and preventing electrolysis. Brass parts are standard for water and AC lines.
Nickel-plated brass gives superior durability and a polished look. Custom caps may be powder-coated or anodized for looks and safety. Verify chemical safety when picking decorative finishes for systems handling glycol or other fluids.
Common Configurations And Related Keywords
Common forms are unions, couplings, tees, adapters. You’ll find them labeled as 3/4 compression unions, couplers, or tees for splitting pipes.
In part selection, ensure the 3/4 compression nut matches. A 3/4 brass compression coupling is a robust choice when brass is preferred. Check the specs, such as PSI and temp limits, and if spares come with it.
Here is a comparison to aid your choice.
| Shape | Metal | Usage | Remarks |
|---|---|---|---|
| Union | Copper/Brass | Connecting 2 tubes | Good for repairs and modular systems |
| 3/4 compression coupler | Brass or nickel-plated brass | Joining same size pipe | Often sold with ferrules and nuts included |
| 3/4 brass compression coupling | Brass | Potable water and HVAC | Corrosion resistant |
| Compression tee | Brass or nickel-plated | Branching lines | Check pressure rating for multi-branch systems |
| Adapter | Various | Transition between fittings and valves | Check threads/seat |
Refer to this guide to pair a 3/4 compression nut and ferrule to the right fitting. Proper matching prevents leaks and speeds up installation. Ensure you have extra parts on hand for repairs.
How To Install And Fix 3/4 Compression Fittings
Make sure the sizes correspond to the fitting. Check the copper tubing is the correct class (Type M, L, K, or ACR) and is 3/4″ OD. Look for ASTM and NSF markings when applicable. Choose brass or copper fittings that match the tube metal to prevent corrosion.
Preparation of the tube are essential. Use a tubing cutter for a straight cut. Deburr the inside edge and remove sharp outside burrs for even ferrule seating. Slide the compression nut and ferrule onto the tube prior to insertion into the fitting.
Tubing prep and fitting selection
Decide on the fitting type for your connection. A 3/4 compression union joins two tube ends, whereas a 3/4 compression coupler links straight pipes. A 3/4 copper compression fitting can come with special ferrules or O-rings for specific uses. Choose high-quality items in high-pressure lines or cooling jobs.
Install walkthrough
Finger-tighten the compression nut until the tube bottoms out inside the fitting. Use a wrench to turn the nut by the fraction of a turn specified by the manufacturer. Some premium fittings have O-rings and require little more than hand tightening; always follow the product instructions.
For ferrule fittings, tighten to compress and grabs the pipe. If there is an O-ring, inspect its seating before final torque and keep a spare O-ring available for repairs. For hidden pipes, pressure-test the assembly at design pressure and check for leaks.
Troubleshooting leaks
Leaks often stem from a non-square cut, bad rings, poorly seated pipe, or bad torque. Over-tightening can crush rings and under-tightening leaves the joint loose. Swap out bad parts and cut the pipe straight when needed.
Recurring drips may indicate the fitting needs replacement or a solid connection such as solder is more appropriate. Stock extra nuts, rings, seals in your toolbox for quick field repairs. A 3/4 compression union or a coupler can be easily changed if replacement is needed.
| Issue | Reason | Quick Fix |
|---|---|---|
| Slow drip at joint | Under-tightened 3/4 compression nut or mis-seated ferrule | Tighten to spec; reseat/replace |
| Immediate leak after installation | Damaged O-ring or ferrule, or tube not fully inserted | Check parts, re-cut, replace |
| Recurring leaks | Crushed ferrule or mismatch | Replace fitting with premium 3/4 copper compression fitting or use soldered joint for permanence |
| Leak at union between two lines | Misalignment or improper nut torque on 3/4 compression union | Realign tubing, check both 3/4 compression nuts, tighten to spec, pressure-test |
| Pressure failure | Incorrect fitting type, e.g., wrong coupler or substandard material | Upgrade to a certified 3/4 compression coupler and test at system pressure before service |
How To Choose The Best 3/4 Compression Fittings From Installation Parts Supply.com
Start by checking the specs and material. Select brass, plated, or copper, making sure they have clear corrosion resistance ratings. Check listings for operating pressure and temperature limits. It’s also important to check if the product includes ferrules or spare O-rings. Know the recommended tightening method, hand or tool tight.
Select the style for your job. A 3/4 union is ideal for connecting two tubes same diameter. For straight runs, a 3/4 compression coupler is appropriate. A brass coupling is great for looks or transitions. Keep extra compression nuts and ferrules for fixes.
Ensure the fitting is compatible 3/4″ OD tubes. Check compatibility with M, L, K, ACR pipes. For HVAC or refrigeration projects, verify usage with ACR copper and the refrigerants used.
Look at the finish and precision features of the parts. Premium options may offer colors or plating that stop tarnish and enhance appearance. Good seats and machined ferrules reduce leaks and ease install.
Before ordering, check stock and shipping times. Installation Parts Supply.com often has a large selection of fittings and tubes in stock. Be aware of shipping cutoffs if same-day processing is required.
Check the warranty and returns info. Seek good coverage and a easy returns, like 30 days for new items. Save receipts and order numbers accessible to expedite any claims for bad parts.
Follow this list to make choosing easy:
- Material/Corrosion specs
- Pressure/Temp limits
- Included ferrules, O-rings, and installation notes
- Tube compatibility
- Type: Union, Coupler, or Brass Coupling
- Stock, Ship time, Warranty
Conclusion
Choosing a top-tier 3/4 copper compression fitting guarantees secure joints. These are vital for residential and commercial systems. They fit common copper tube types—M, L, and K. Thus you can select the right fitting for the job, ensuring durability under normal conditions.
To achieve the best outcomes, make sure you know the pipe specs. Cut and deburr the tube ends. Pick the right fitting that suits your needs. Adhering to these steps and obeying instructions reduces leak risk and the need for rework.
For reliable parts, turn to Installation Parts Supply.com. They provide good inventory, certified copper, and good policies. By comparing product details, verifying stock, and selecting premium 3/4 compression fittings, you ensure secure, lasting connections every time.
