About 68% of U.S. homes constructed before 1980 use copper in part of their water supply system. This highlights the enduring importance of copper pipe fittings in plumbing systems. This guide explains the key copper fittings commonly found in plumbing. They connect, redirect, and regulate water, gas, and refrigerant flows. Common examples include elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
Go to website of 5 8 Copper Tubing
Copper remains a favorite among contractors and DIYers thanks to its durability, heat resistance, and water-quality benefits. When installed correctly, copper fittings can last decades. This makes them a cost-effective choice for many projects.
In this article, we’ll discuss how to identify fittings by function and size. We’ll also compare soldered versus mechanical connections. You’ll learn how to find compatible parts through trusted suppliers like Installation Parts Supply. Our goal is to provide clear guidance for choosing the right plumbing fittings for your next job.
Copper Pipe Fittings: Overview And Reasons To Choose Copper
Copper pipe fittings are a popular choice in both residential and commercial plumbing. Their mix of strength, workability, and proven long-term performance makes them suitable for a wide range of systems. Below is an overview of why plumbers and contractors continue to choose copper for repairs and new construction.
The Benefits of Copper
Copper is known for its durability and malleability, allowing fittings like elbows and tees to be shaped easily without cracking. Its ability to withstand high temperatures makes it perfect for hot water supply and boiler loops. Copper also has bacteriostatic properties, ensuring safer potable water compared to some plastics. It can be connected using solder, press systems, compression methods, or push-fit solutions, giving installers more flexibility.
Longevity and corrosion resistance
Copper tubing can last between 70 to 80 years when installed correctly. Its surface oxidation forms a protective patina, limiting deeper corrosion and supporting its longevity and corrosion resistance. Quality material, proper fluxing, and clean joints are essential to prevent pinhole leaks and premature failure. Regular inspections and the use of correct fittings can further extend its service life in both supply lines and HVAC loops.
Applications Where Copper Outperforms Other Materials
In hot-water systems, refrigeration lines, and high-pressure applications, copper often performs better than many alternatives. In HVAC and refrigeration, pipe 5 8 and copper tube 5/8 sizes are commonly used for refrigerant circuits, ensuring reliable performance under pressure and heat. Compared to PVC or PEX, copper fittings can handle higher temperatures and maintain rigidity under stress. Against multilayer or composite pipes, copper is less susceptible to impact damage and has a proven track record in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Strength and Durability | Strong tensile performance and wear resistance | Hot-water supply, boiler loops |
| Heat tolerance | Withstands high temperatures without softening | Water heaters and HVAC lines |
| Corrosion performance | Develops a protective patina that slows degradation | Long supply runs in homes |
| Connection methods | Soldering, brazing, compression, push-fit, press | New installations and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 for refrigeration | Refrigerant circuits and tight commercial runs |

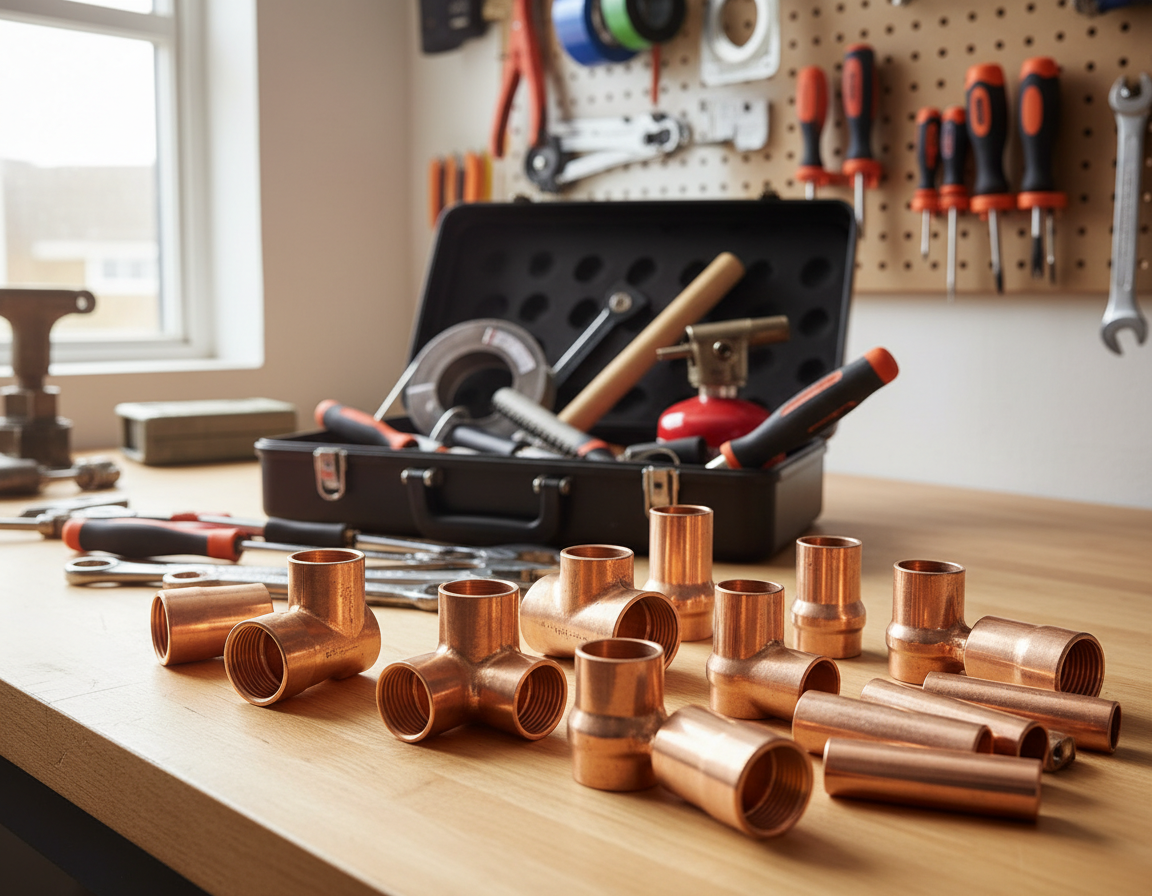

Common Types Of Copper Pipe Fittings For Supply Lines
Selecting the right copper fittings is essential for a successful project. This section covers the essential fittings used on water supply lines, including fittings for changes in direction and service access. Be sure to consider connection style, pipe size, and material compatibility as you plan.
Elbows, Tees, And Crosses: Changing Direction And Branching
Elbows are used for 90°, 45°, and 22.5° angles to guide flow around corners. They’re essential for navigating around obstacles or following wall paths. Tees split or combine flow for three-way connections, common in kitchens and bathrooms. Crosses connect four directions, ideal for where systems meet.
You can find these fittings in multiple connection styles, such as sweat/soldered, press, and compression. Select the connection method that works best with your copper pipe connectors and the installer’s skill set.
Couplings, Adapters, And Unions Used For Joining And Maintenance
Copper couplings connect two pipe lengths of the same diameter. Reducing couplings are used when different sizes must be joined. Adapters are used to convert between materials and thread styles, such as copper-to-brass or copper-to-PEX.
Unions make it easy to separate sections for repairs or equipment servicing. They are ideal in places where a valve or fixture must be removed periodically. Make sure unions and adapters match the pipe OD or nominal size to avoid leaks.
Caps, Plugs, And Clean-Outs For Sealing And Access
Caps seal an end of a line, while plugs thread into fittings to seal branches. Both are used for pressure testing and temporary terminations. Clean-outs provide access to drain lines for maintenance and blockage removal.
Select caps, plugs, and clean-outs that match the system material and pressure rating. Confirm whether the fitting size is referenced by nominal size, OD, or ID, because this is critical for 5 8 copper fittings and other sizes.
During project planning, ensure that copper pipe connectors, couplings, adapters, and unions all match the pipe type. This prevents fit issues and simplifies maintenance.
Copper Compression And Push-To-Connect Connections
Compression and push-to-connect fittings simplify copper plumbing and make many jobs faster and safer. They are ideal when using a soldering torch is impractical or when a quick repair is needed. Below, we’ll explore how each system functions, their appropriate applications, and essential installation tips for 5/8 copper tube projects.
How A Compression Fitting Forms A Seal
A compression fitting uses a ferrule and a nut to form a seal. As the nut tightens, the ferrule compresses around the tube, biting into the copper. The result is a leak-resistant connection that does not require heat. These fittings are often used on supply lines and in repair work where a torch is impractical.
These joints work well across multiple sizes, including 5 8 copper pipe fittings. When installed correctly, they allow for disassembly, making them ideal for accessible valves and meter connections.
Push-To-Connect Fittings For Fast Installations
Also known as quick-connect fittings, push-to-connect copper fittings allow a deburred tube to be pushed into the body until it clicks into place. No solder, crimping, or special tools are required. This simplicity makes them a favorite among DIYers and professionals working in confined spaces.
These fittings are available for common sizes such as 5/8 copper tube. Many manufacturers publish pressure and temperature ratings for them. It’s essential to match the fitting to the tubing type and follow the manufacturer’s depth guidelines for reliable performance.
Why These Fittings Outperform Solder In Some Jobs
With compression and push-fit copper fittings, there is no need for a torch, flux, or open flame. That helps reduce fire hazards in occupied buildings and can speed retrofit projects. They are also time-saving options for emergency repairs and installations in tight spaces.
It’s important to note that mechanical fittings might be more expensive per unit and have lower temperature limits than soldered joints. Always check ratings before using quick-connect fittings on hot-water or high-pressure lines. When properly used, these fittings provide a safe and flexible alternative to soldering in many plumbing applications.
Sweat And Soldered Copper Fittings
A sweat connection forms a strong bond between a fitting and a pipe by using flux and filler metal. By contrast, brazing uses higher heat and a filler metal that melts above 840°F. This method is common in HVAC and refrigeration work. Both methods create durable, long-lasting joints when executed correctly.
Technique Overview
Sweat copper fittings rely on solder to fill the gap between the copper tube and the fitting. Brazing copper pipe, with its hotter flame and brazing rod, is ideal for joints facing higher temperatures and pressures. Which method to use depends on the needs of the system and any applicable local regulations.
Required Tools and Safety Gear
The main tools include a tube cutter, a deburring tool, a wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is commonly used for soldering, while brazing is better handled with MAPP or acetylene. Protective goggles, a face mask or respirator, heat-resistant gloves, an apron, and safety shoes should always be worn.
Soldering Tips Step by Step
- Square-cut the copper tube 5/8 section, then deburr the edge for a proper fit.
- Clean both pipe and fitting with emery cloth or a wire brush until bright copper appears.
- After applying flux to the cleaned surfaces, assemble the joint and twist it slightly to distribute the flux.
- Heat the fitting evenly with an enveloping flame. For brazing copper pipe, watch for a subtle red tint as temperature climbs.
- Feed solder or brazing rod at the joint; allow capillary action to draw filler around the seam.
- Let the joint cool on its own, then remove any soot and flux residue using an appropriate cleaner.
When To Choose Soldered Fittings
Choose copper solder fittings when you need a permanent, dependable joint in potable-water systems and moderate-temperature applications. Brazing is better suited for HVAC or refrigeration where higher temperature resistance is needed. Any work involving 5/8 copper tubing or copper tube 5/8 sized lines should follow manufacturer instructions and code requirements for pressure compatibility.
Practical Considerations
Skilled technique is essential to avoid cold joints and porosity. Inspect every joint to confirm full solder coverage, and pressure-test the system before it is insulated or concealed. For many plumbing jobs, sweat copper fittings are a staple, while brazing copper pipe is best for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings For Refrigeration And HVAC
HVAC and refrigeration systems require precise fittings and tubing to move refrigerant safely. Technicians choose materials and connection types based on pressure, service access, and code requirements. Understanding common fitting styles and sizes helps prevent leaks and future service problems.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. Before ordering parts, it is important to confirm whether the specification refers to nominal size or outside diameter (OD).
5 8 copper tube must be paired with fittings sized for that outside diameter. If the parts are mismatched, the result can be poor seals and unsafe joints. When selecting copper pipe fittings refrigeration components, use manufacturer compatibility charts.
Uses For 5/8 Copper Pipe And 5/8 Refrigeration Tubing
For refrigerant lines, precise bends and consistent wall thickness are essential. A length of 5 8 copper refrigeration tubing is suitable for liquid lines and smaller suction runs. The 5/8 OD copper tubing size is commonly used for designing service valves, filter driers, and meters.
Flare, Bite-Type, And Brazed Fittings For Refrigerant Lines Under High Pressure
Flare fittings seal by compressing a flared tube end under a flare nut. Where serviceability matters, such as at gauges and access panels, technicians often use flare fittings. For field service, flare joints can be tightened by hand.
When tightened, bite-type fittings use a ferrule that grips and bites into the tube wall. Installers often prefer bite-type fittings when there is limited space or when flaring is difficult. These fittings are valued in mobile applications because they assemble quickly and resist vibration well.
A brazed fitting creates a strong, leak-resistant metallurgical bond. HVAC systems handling high pressures or elevated temperatures often require brazed connections. Brazing may be required by manufacturers or code rules for some refrigerants and high-pressure circuits.
Sizing Notes: 5 8 Copper OD, ID, And Selecting Compatible Fittings
Confirm the difference between 5/8 od copper tubing and a 5/8 id pipe before buying fittings. A 5/8 id pipe has a smaller OD than tubing labeled 5/8 OD. Checking both OD and ID prevents fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid/suction lines, service connections | Rare for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to ID-based plumbing standards |
| Installation notes | Verify flare nut size and ferrule type before flaring or tightening | Measure OD when adapting to HVAC components to ensure fit |
| Pressure Suitability | High-pressure refrigerant circuits with correct wall thickness | Varies by pipe class; often lower than refrigeration-rated tubing |
When selecting parts, match the fitting specification to the tubing OD and choose copper pipe fittings refrigeration products that state compatibility with 5/8 od copper tubing. Keep a stock of flare fittings and bite-type fittings for field repairs. Use brazed fittings where codes or system pressure require permanent, high-strength joints.
How To Choose The Right Copper Fitting: Sizing, Material, And Code Considerations
To choose the right copper fitting, you need accurate measurements and a clear understanding of performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. This step is critical to avoid leaks and ensure the fitting matches the system’s needs.
Many refrigeration and HVAC parts are sized by outside diameter. As an example, 5 8 copper pipe od is often used in refrigeration tubing. Residential plumbing, however, often relies on nominal sizes related to internal diameter. Before buying, always review the manufacturer’s notes for 5/8 in copper pipe sizing.
When matching fittings to pipe, verify if the tubing is described as 5 8 id tube or 5 8 od tubing. Different fittings like compression, sweat, flare, and brazed require specific clearances and preparation. The fitting method should be selected according to the application and pressure level.
System pressure and temperature dictate the choice of material and joint type. For hot potable-water systems, high-temperature-rated soldered or press fittings are recommended. Flare or brazed joints are well suited to high-pressure refrigerant lines. Brass adapters work well when transitioning between copper and other metals.
Local plumbing codes also play a significant role. Check local plumbing codes copper fittings requirements before you start any work. Some jurisdictions require brazed joints for HVAC refrigerant systems or restrict mechanical fittings in concealed locations. Look for NSF/ANSI or UPC certifications to meet code and warranty standards.
When choosing copper fittings, buy from reputable suppliers such as Ferguson or Grainger and follow the manufacturer’s instructions. If you are unsure, consult a licensed plumber or HVAC technician to verify fit and rating. This helps prevent expensive rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing | 5 8 copper pipe OD | High-pressure refrigerant lines | Fittings usually sized by OD; use flare or brazed joints |
| Supply water tubing | 5/8 in copper pipe sizing, nominal | Residential water-supply systems | Check whether the label refers to ID or nominal size |
| Compression fitting style | Marked by tube OD or nominal ID | Quick repairs, retrofit work | Good for low-to-moderate pressure; follow torque specs |
| Sweat/soldered fittings | Usually listed by nominal size | Hot water, durable joints | Proper cleaning, heat, and flux are required for leak-free joints |
| Flare fittings | 5 8 id tube or 5 8 OD in some specs | Fuel lines and refrigeration lines | Do not mix flare and compression fittings unless they are rated for both |
| Required certifications | NSF/ANSI, UPC | Potable-water systems | Required under many local plumbing codes copper fittings requirements |
Use a detailed checklist: confirm sizing, select fittings for the correct temperature and pressure, verify certifications, and ensure proper installation. This helps you choose copper fittings that perform reliably and comply with local codes.
Installation Tips, Common Mistakes, And Maintenance For Copper Fittings
Preparation is key to avoiding failures. Adhering to basic installation tips for copper fittings can significantly reduce leaks and rework. The decisions made during assembly have a major impact on long-term system performance. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, deburring, and cleaning pipe ends before assembly
Start by using a proper tube cutter to ensure a square cut. After cutting, remove burrs and copper shavings from the pipe end and ID. Clean the inner surface of fittings and the outer pipe end with a wire brush or emery cloth. This step is necessary for even flux and solder flow. Without proper prep, capillary action is compromised, leading to leaks.
Proper Use Of Flux, Heat, And Solder; Avoiding Cold Joints And Leaks
Flux should be applied evenly to both mating surfaces before the joint is assembled. Then, heat the fitting. To distribute heat uniformly while soldering copper pipe, keep the flame moving. Feed solder to the heated seam and let capillary action pull it into the joint. Avoid overheating, which can burn flux and weaken the joint, and underheating, which causes cold joints that leak.
Using Teflon Tape And Thread Sealants While Avoiding Overtightening
Male threads on threaded copper fittings should receive Teflon tape or a compatible pipe thread sealant. The tape should be wrapped clockwise so it stays in place as the fitting is threaded. Do not overtighten, because too much torque can crack fittings or strip threads. For compression fittings, use the manufacturer’s recommended torque or turn count so the ferrule is not crushed.
Routine Inspection, Leak Prevention, And Fitting Replacement
Inspect copper fittings regularly for corrosion, pinhole leaks, and mechanical damage. Leak prevention starts with correct assembly but continues with periodic checks. Replace fittings if leaks persist after tightening, if corrosion is visible, or when systems are upgraded to modern standards.
Common errors include skipping cutting, deburring, and cleaning steps, mixing OD and ID sizing conventions, overheating joints during soldering, and ignoring pressure limits set by the manufacturer. Always keep spare parts from trusted suppliers like Mueller Industries or Viega and follow product instructions to maintain reliable systems.
Conclusion And Final Guidance
In plumbing and HVAC, copper pipe fittings stand out for their durability, resistance to heat, and long lifespan. Whether you choose soldered joints, compression fittings, push-to-connect fittings, flare connections, or brazed assemblies depends on the details of the job. It’s critical to match the fitting type and size correctly. Be mindful of OD versus ID sizes, like 5/8, to avoid errors.
Copper fittings should be selected only after confirming they meet pressure ratings, material standards, and local code requirements. If you need quality products and reliable support, use a trusted wholesale distributor like Installation Parts Supply. Such suppliers can provide compatibility charts and certification details that help guide product selection for plumbing projects.
Proper preparation and installation are essential for a long-lasting system. Start by cutting, deburring, and cleaning the pipe ends. Then follow the recommended procedures for fluxing, heating, or mechanical assembly. Regular inspections and timely replacement of worn fittings are essential for maintaining a leak-free, safe system.
